Линия накатки и подачи проволоки

200

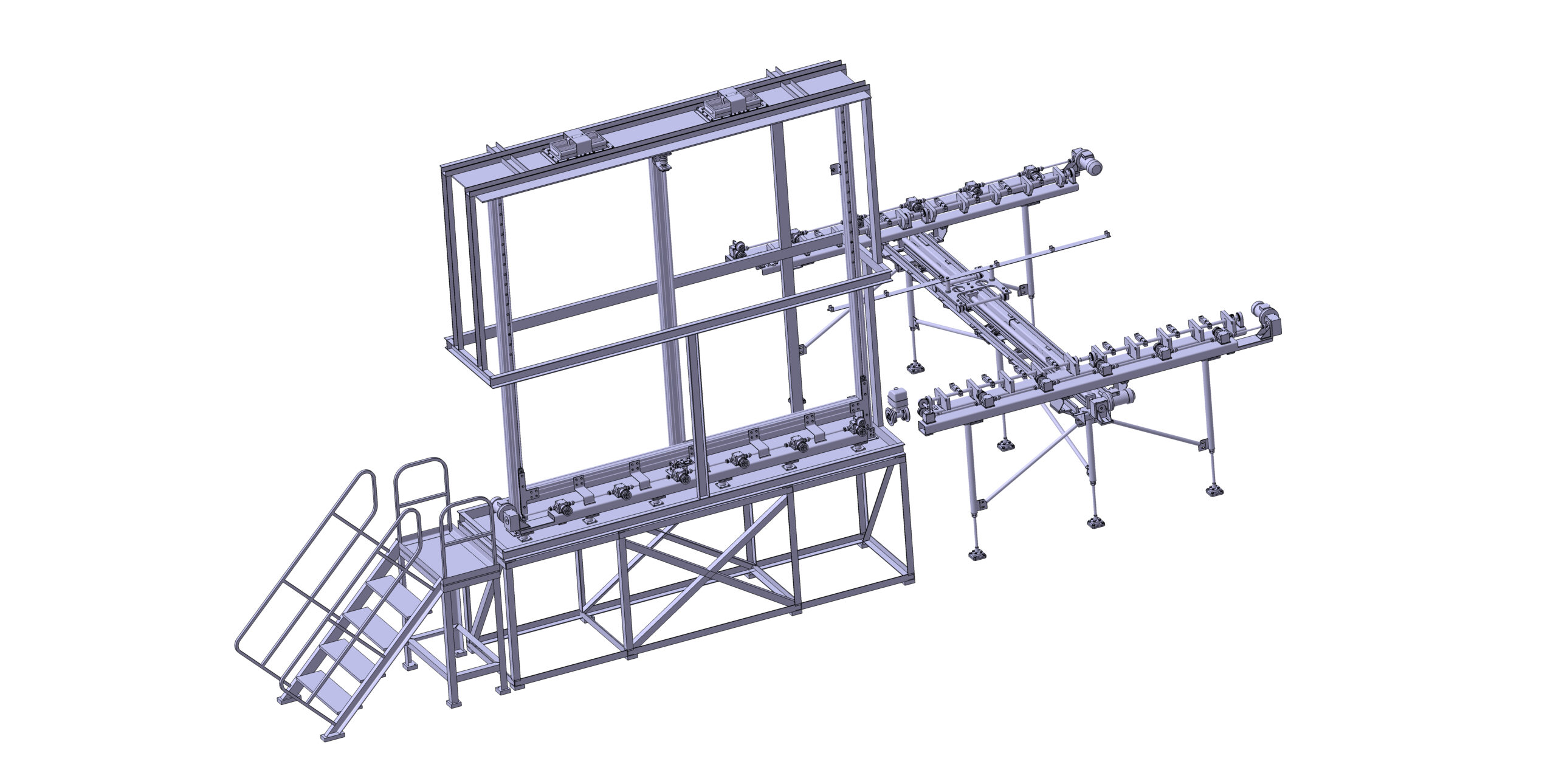

Линия накатки, перемещения и подъема на участок бухтования проволоки. Максимальный диаметр подачи проволоки - 15 мм, максимальная длина - 2300 мм, высота подъема механизма - 2200 мм.
Габаритные размеры линии ДхШхВ (6242х3292х4011) мм

3D Модели

Автор

Иван Иванов

Дата

01.12.2021

Язык

Русский

Состав

Сборка плюс импорт

Софт

CATIA P3V56R2018

Отзывы

Отзывов пока нет

Задать вопрос
