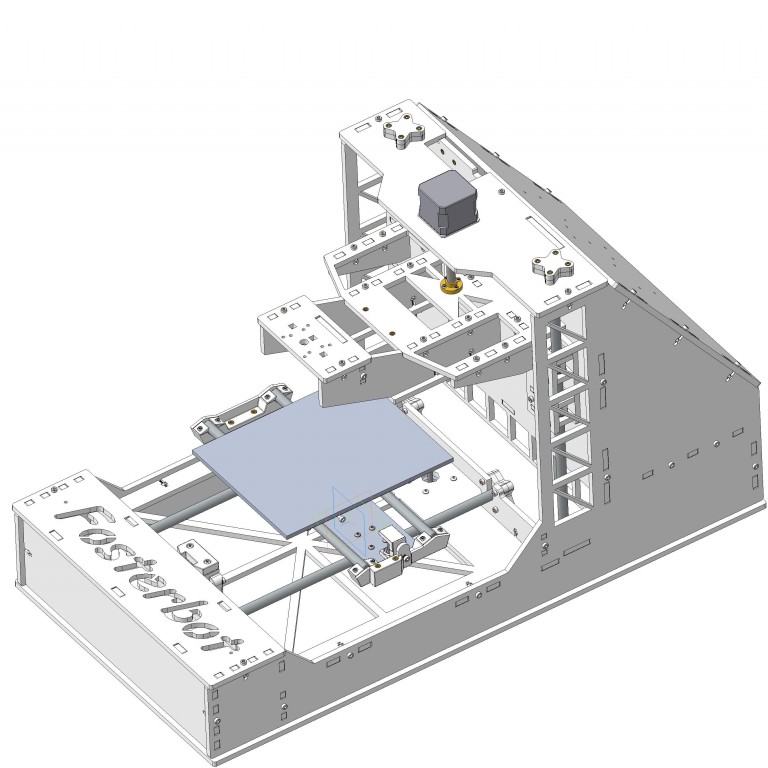

3D Принтер Fosterbot

349

4938

500

Принцип действия данных принтеров основан на послойном наложении разогретого пластика. Контур наложения пластика формируется управляющей программой и преобразуется в перемещения головки-экструдера по осям X и Y. После наложения очередного слоя головка поднимается вверх на величину, равную высоте слоя, и процесс повторяется для нового слоя. В данном принтере в качестве расходного материала выступает пластиковая нить диаметром 3мм или 1,75мм (ABS или PLA). Выходное отверстие имеет диаметр 0,5мм, 0,4мм или 0,3мм.

3D Модели 3D принтер принтер

Автор

penni

Дата

24.04.2013

Язык

Русский

Состав

3D Модель

Софт

КОМПАС-3D 14 Как открыть?

Содержимое архива

Fosterbot
- Fosterbot X-Stage Printed Bearing Bracket - Rear.a3d
- Fosterbot Y-Stage Printed Left Shaft Bracket.m3d
- Fosterbot Frame - Side Panel.m3d
- Fosterbot Z-Stage Outside Vertical Brace.m3d
- Fosterbot Frame - Build Chamber Front Wall.m3d
- Fosterbot Frame - Build Chamber Rear Wall.m3d
- 91292A115 - M3 x 16 Socket Head Cap Screw_91292A115.m3d
- Fosterbot X-Axis Pulley Axle.m3d
- Makerbot X-Axis Stepper Motor.m3d
- Fosterbot X-Stage Printed Bearing Bracket - Rear.m3d
- 94180A331 - M3 x 0.5 Brass Threaded Insert.m3d
- Fosterbot Frame - Electronics Mounting Platform.m3d
- Fosterbot Z-Stage Bearing Bracket.m3d
- Fosterbot Y-Stage Bearing Bracket.a3d
- 91292A123 - M3 x 20 Socket Head Cap Screw_91292A123.m3d
- 94180A331 - M3 Threaded Insert.m3d
- 92095A179 - M3 X 6mm Button Head_92095A179.m3d
- Fosterbot Z-Stage Bottom Brace.m3d
- Fosterbot Y-Axis Pulley Axle.m3d
- 92196A077 - 2-56 x 0.25 Socket Head Cap Screw_92196A077.m3d
- Fosterbot Y-Stage Right-Side Shaft Bracket.a3d
- Fosterbot Y-Axis Idler Pulley Bracket.m3d
- Fosterbot Frame - Bottom Panel.m3d
- Fosterbot Frame Assembly.a3d
- Fosterbot Frame - Z-Axis Shaft Bottom Brace.m3d
- 7804K100 - 4mm Shaft Bearing_7804K1.m3d
- 9968K23 - Bearing Retaining Ring_60595K12.m3d
- Fosterbot Z-Stage Extruder Barrel Fan Bracket.m3d
- Fosterbot Y-Stage Machined Belt Bracket.m3d
- Fosterbot X-Stage Printed Bearing Clamp.m3d
- 60595K120 - Short Linear Ball Bearing_60595K12.m3d
- Fosterbot Y-Stage Platform.m3d
- Fosterbot Z-Stage Inside Vertical Brace.m3d
- 93655A722 - M3 x 31 M-F Hex Standoff_93655A722.m3d
- 91292A024 - M3 x 40 Socket Head Cap Screw_91292A024.m3d
- Makerbot Y-Axis Guide Rod.m3d
- Fosterbot X-Stage Heated Build Platform.m3d
- Fosterbot Y-Stage Printed Shaft Bracket Clamp.m3d
- 93655A428 - M3 x 20 M-F Hex Standoff_93655A428.m3d
- Fosterbot Y-Axis Idler Pulley Assembly.a3d
- Makerbot Motherboard - Arduino Mega 2560.m3d
- Makerbot Stepper Driver Board v3.3.m3d
- Fosterbot Z-Stage Rear Brace.m3d
- Makerbot X-Axis Guide Rod.m3d
- Fosterbot X-Stage Printed Bearing Bracket - Front.a3d
- Fosterbot X-Axis Printed Idler Bearing Holder.m3d
- Fosterbot Y-Stage Printed Bearing Bracket.m3d
- 93365A110 - 2-56 Brass Threaded Insert.m3d
- Fosterbot Frame - Guide Rod End Cap Assembly.a3d
- Fosterbot Z-Stage Top Brace.m3d
- 91828A211 - M3 Hex Nut_91828A211.m3d
- Fosterbot Y-Axis Stage.a3d
- 92095A182 - M3 x 10mm Button Head Screw_92095A182.m3d
- 60595K420 - Long Linear Ball Bearing_60595K42.m3d
- Fosterbot Frame - Guide Rod End Cap.m3d
- Fosterbot Frame - Nameplate.m3d
- Makerbot Extruder Controller v3.6.m3d
- Fosterbot Y-Stage Printed Bearing Clamp.m3d
- Fosterbot Frame - Build Chamber Y-Axis Guide Rod Stop.m3d
- 92095A179 - M3 X 6mm Button Head Screw_92095A179.m3d
- Fosterbot Frame - Guide Rod Collar.m3d
- Fosterbot Frame - Y-Axis Rod Support.m3d
- Fosterbot Frame - Power Supply Cover.m3d
- 7804K103 - 4mm Stock Makerbot Bearing_7804K103.m3d
- Fosterbot Alpha.a3d
- Fosterbot X-Axis Stage.a3d
- Fosterbot Frame - Front Panel.m3d
- Fosterbot X-Axis Printed Idler Adjustment Beam.m3d
- Fosterbot Z-Stage Front Brace.m3d
- Fosterbot Y-Stage Belt Bracket.a3d
- Fosterbot Frame - Top Body Panel.m3d
- Fosterbot Y-Stage Printed Right Shaft Bracket.m3d
- Fosterbot X-Axis Platform.m3d
- Makerbot Stepper Motor Cork Gasket.m3d
- Fosterbot Y-Stage Left-Side Shaft Bracket.a3d
- Fosterbot Z-Stage Assembly.a3d
- Fosterbot X-Stage Belt Bracket.a3d
- Makerbot Z-Axis Guide Rod.m3d
- Makerbot Z-Axis Stepper Motor.m3d
- 91292A114 - M3 x 12 Socket Head Cap Screw_91292A114.m3d
- Z-Axis Acme Nut.m3d
- Fosterbot Frame - Populated Electronics Mounting Platform.a3d
- Fosterbot X-Stage Printed Bearing Bracket - Front.m3d
- Fosterbot X-Stage Belt Bracket A - Machined.m3d
- Fosterbot Frame - Electronics Bay Cover.m3d
- Fosterbot X-Axis Idler Pulley Assembly.a3d
- Fosterbot X-Stage Belt Bracket B - Printed.m3d
- Fosterbot Z-Stage MK6 Extruder Mounting Plate.m3d
- Fosterbot Y-Stage Printed Belt Bracket.m3d
- Fosterbot Frame - Build Chamber Floor.m3d
- Fosterbot Y-Axis Idler Pulley Clamp.m3d
- Makerbot Y-Axis Stepper Motor.m3d
