3D Модель Вертолет NH-90

194

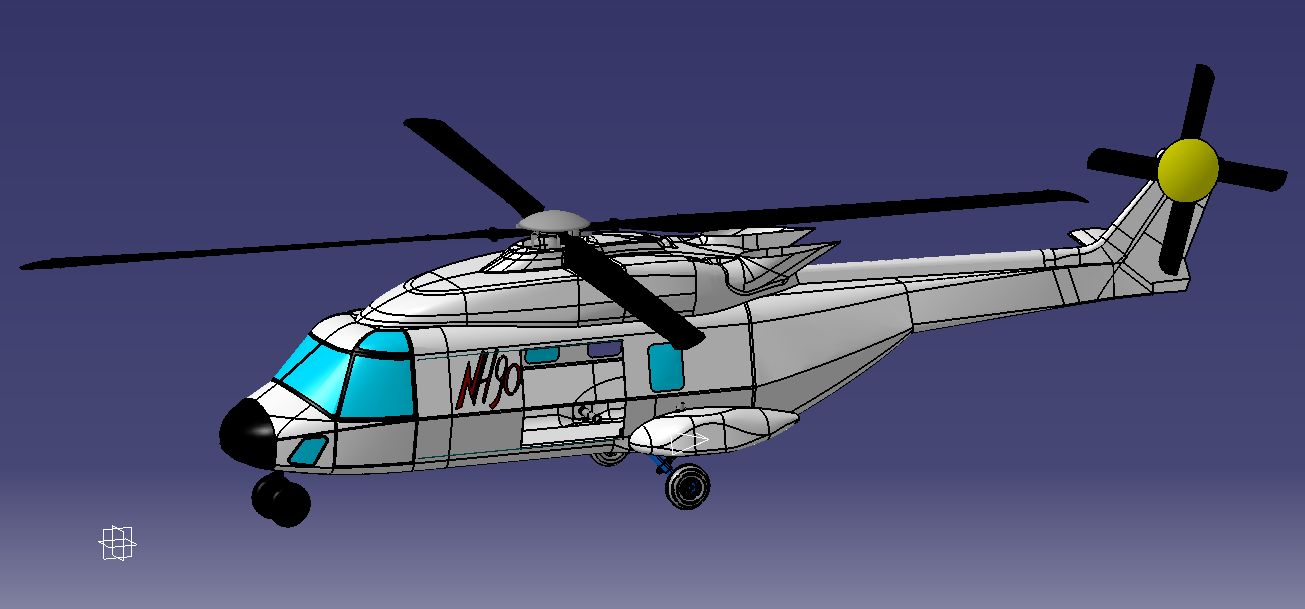

В архиве представлена 3D Модель вертолета NH-90, выполненная в модуле DMU Space Analysis и предназначенная для анализа интерференции, секционирования, измерения и 3D сравнения

3D Модели NH-90 Вертолет

Автор

Анатолий Яблонский

Дата

26.05.2022

Язык

Русский

Состав

3D Сборка

Софт

CATIA V5R19-x86-Full_SP2

Отзывы

Отзывов пока нет

Задать вопрос
