Экраны вертикального водотрубного котла ТЭЦ

538

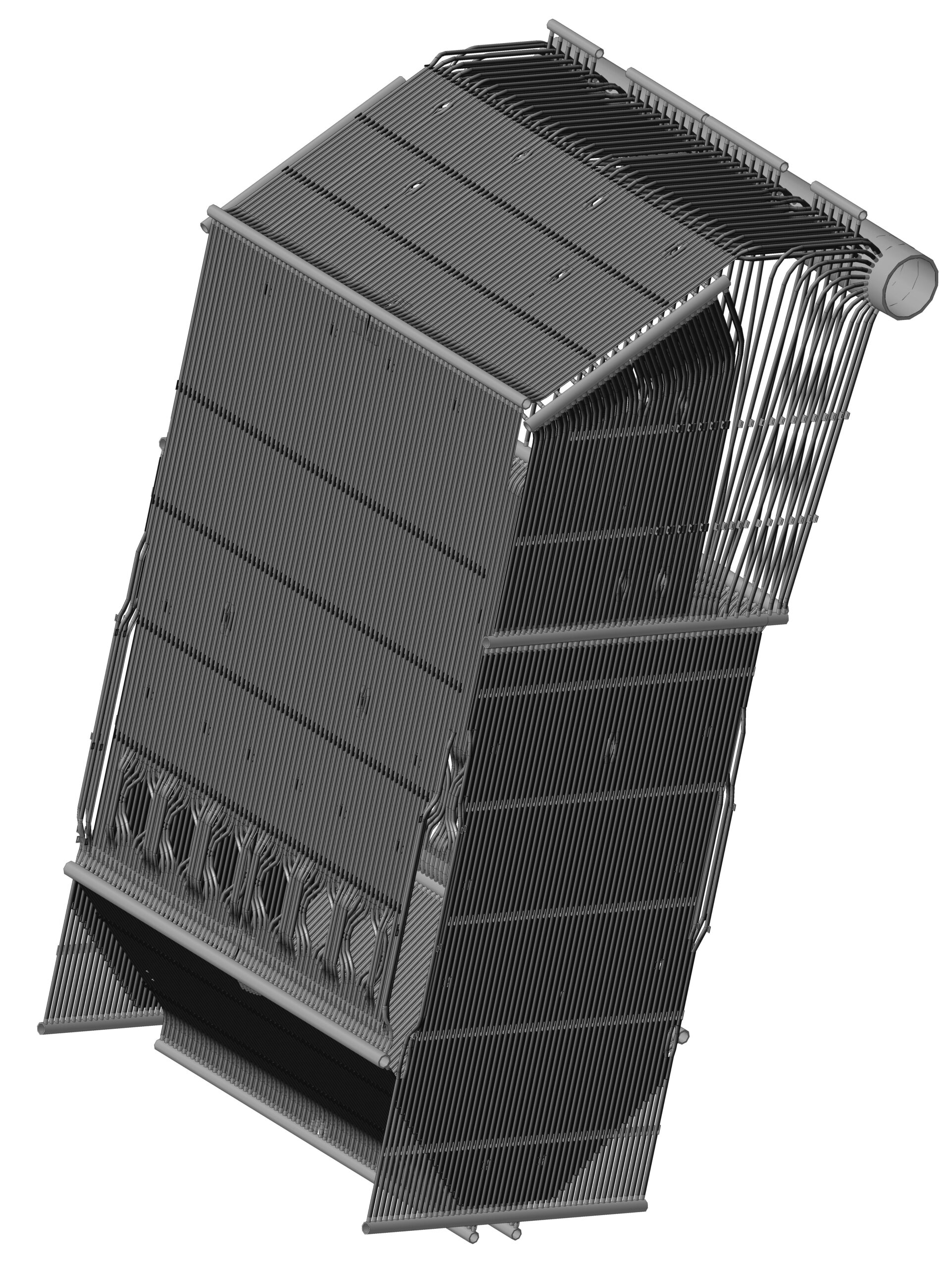

Модель для разработки конструкторской документации на замену экранных труб котла фирмы International Combustion Limited из металлопроката выпускаемого в РФ. Котел вертикальный-водотрубный, трехбарабанный с дополнительным четвертым барабаном-грязевиком, оснащён пароперегревателем и водяным экономайзером.

3D Модели вертикально-водотрубный Котел экранные трубы

Автор

Егор

Дата

10.07.2017

Язык

Русский

Состав

Общая сборка всех экранов, сборки каждого экрана и отдельно деталями каждая экранная труба (кроме идентичных).

Софт

КОМПАС-3D 16.1.5 Как открыть?

Отзывы

Отзывов пока нет

Задать вопрос

Содержимое архива
