Башня высотой 18м. КМД. 4й-ветровой район.

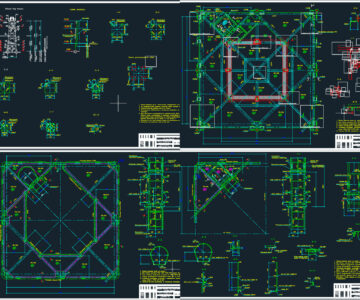

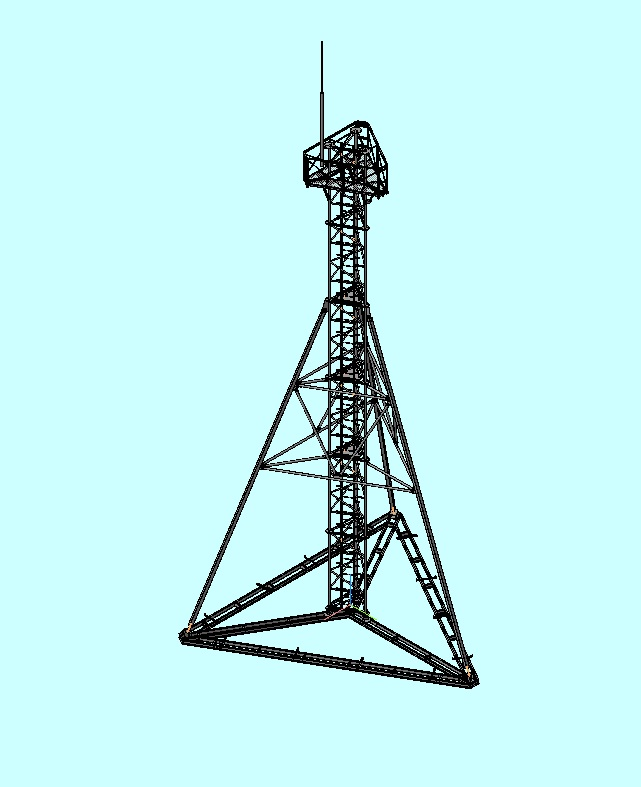

Сборочная модель башни Н=18м. Чертежи на сборочные единицы, деталировка, листовые детали в формате DXF.

Башня Р=18м. Металлоконструкции. КМД

Автор

Valeriy6773

Дата

22.07.2020

Язык

Русский

Состав

3D Сборка без крепежа, сборочные единицы, детали.

Софт

КОМПАС-3D 18 SP1.27 Как открыть?
