Механический захват

Этот механизм используют для захвата некоторых небольших заготовок легкого веса, таких как дерево, резина.

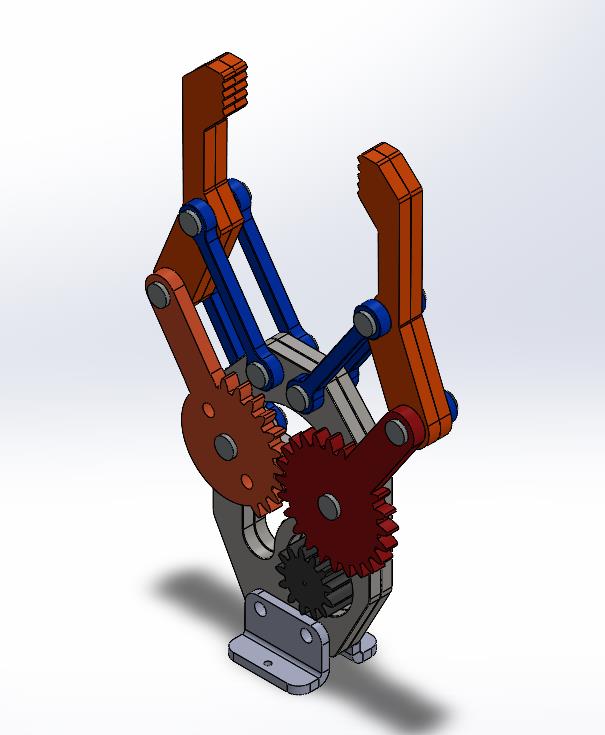

mechanical scheme for the grip mechanism Designed using spur gears to drive.

Movement simulation using Soldwork software to create.

Overall dimensions of the workpiece :
Height = 128 mm
width = 54 mm
Depth = 13 mm

Engineering plastics material trial to create model.

"This mechanism use for grip some small workpiece who light weight such as wood, rubber."
